Chain Link Fittings

Post Caps

Loop Caps (Eye Tops or Line Tops)

Loop Caps (Eye Tops or Line Tops)

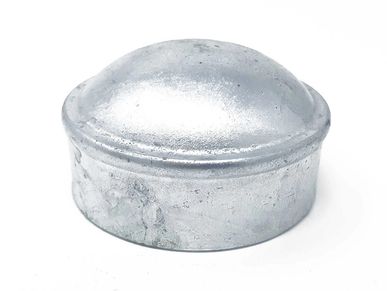

Chain Link Fittings - Post Caps

Post Caps cover the top of the post.

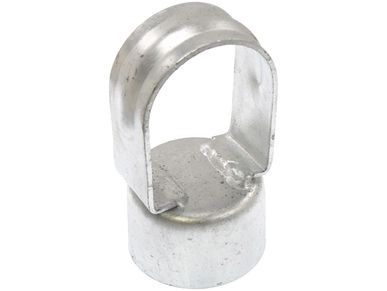

Loop Caps (Eye Tops or Line Tops)

Loop Caps (Eye Tops or Line Tops)

Loop Caps (Eye Tops or Line Tops)

Chain Link Fittings - Loop Caps

Loop Caps connect horizontal top rails to line posts. Terminal and corner posts always use post caps.

Boulevards (Line Rail Clamps)

Loop Caps (Eye Tops or Line Tops)

Boulevards (Line Rail Clamps)

Chain Link Fittings - Boulevards (Line Rail Clamps)

Boulevards connect horizontal middle and bottom rails to line posts. Top rails are connected with loop caps.

Brace Bands

Rail End Cups

Boulevards (Line Rail Clamps)

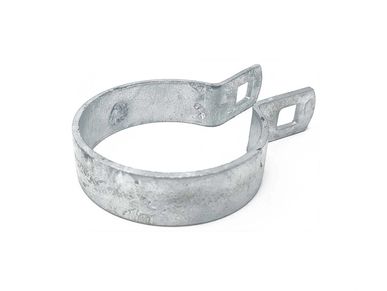

Chain Link Fittings - Brace Bands

Brace Bands wrap around terminal posts to connect with horizontal rails.

Rail End Cups

Rail End Cups

Rail End Cups

Chain Link Fittings - Rail End Cups

Rail Ends connect horizontal rails to terminal posts, and are used in combination with a brace band.

End Clamps

Rail End Cups

Rail End Cups

Chain Link Fittings - End Clamps

End Clamps connect horizontal rails to terminal posts, and are an alternative to brace bands and rail end cups.

Tension Bands

Tension Bands

Tension Bands

Chain Link Fittings - Tension Bands

Tension Bands secure the tension bar to the terminal post.

Tension Bars

Tension Bands

Tension Bands

Chain Link Fittings - Tension Bars

Tension Bars secure chain link fabric to the terminal post with the use of tension bands, and keep the fence stretched and taut.

Corner Clamps

Tension Bands

Saddle Clamps (Kennel Clamps)

Chain Link Fittings - Corner Clamps

Corner Clamps connect horizontal rails to corner posts.

Saddle Clamps (Kennel Clamps)

Fence Ties & Aluminum Tie Wire

Saddle Clamps (Kennel Clamps)

Chain Link Fittings - Saddle Clamps (Kennel Clamps)

Saddle Clamps connect parallel posts. They are most frequently used to secure adjacent temporary panels.

Top Rail Sleeve

Fence Ties & Aluminum Tie Wire

Fence Ties & Aluminum Tie Wire

Chain Link Fittings - Top Rail Sleeve

Top Rail Sleeves connect two horizontal rails.

Fence Ties & Aluminum Tie Wire

Fence Ties & Aluminum Tie Wire

Fence Ties & Aluminum Tie Wire

Chain Link Fittings - Fence Ties & Aluminum Tie Wire

Fence Ties secure the chain link fabric to posts and horizontal rails.


Fence Ties are pre-cut and sold by the bag; Aluminum Tie Wire is sold by the roll.

Wood to Steel Adapters

Coil Wire (Tension Wire)

Coil Wire (Tension Wire)

Chain Link Fittings - Wood to Steel Adapters

Wood to Steel Adapters secure 2 x 4 wood rails to posts.

Coil Wire (Tension Wire)

Coil Wire (Tension Wire)

Coil Wire (Tension Wire)

Chain Link Fittings - Coil Wire (Tension Wire)

Tension or Coil Wire is used to secure the bottom of a chain link fence. It's used in lieu of bottom rails.

Hog Rings

Coil Wire (Tension Wire)

Hog Rings

Chain Link Fittings - Hog Rings

Hog Rings are used to secure various additions to chain link fence, including windscreen, coil or tension wire, razor ribbon and barbed wire.

Barb Arms

Razor Ribbon

Hog Rings

Chain Link Fittings - Barb Arms

 Barb Arms attach strands of barbed wire to the posts.


Barb Arms are sold  as a single 45-degree arm for three strands (as pictured), or as a V-shape for six strands.

Barbed Wire

Razor Ribbon

Razor Ribbon

Chain Link Fittings - Barbed Wire

 Barbed Wire secures enclosures by making the fence more difficult to climb over. It is installed in strands on top of chain link fences, sometimes in conjunction with Razor Ribbon.


Barbed Wire is sold by the roll and gets connected to the fence posts with Barb Arms.

Razor Ribbon

Razor Ribbon

Razor Ribbon

Chain Link Fittings - Razor Ribbon

 Razor Ribbon secures enclosures by making the fence more difficult to climb. It is installed as a continuous coil on top of chain link fences, frequently in conjunction with Barbed Wire.


Razor Ribbon is sold by the roll and gets connected to the barbed wire with special ties.

Gate Components

Fork

Pin Hinges

Collar

Gate Components - Fork

Forks latches are used in conjunction with Collars to secure chain link gates. Forks get attached to the Collar and swivel to straddle the gate post to keep the gate closed.

Collar

Pin Hinges

Collar

Gate Components - Collar

Collars are used in conjunction with Fork latches to secure chain link gates. Collars secure the Fork latch to the gate frame.

Pin Hinges

Pin Hinges

Offset Hinges

Gate Components - Pin Hinges

Pin Hinges are ideal for smaller, lightweight residential gates. They are inexpensive but can only hold so much weight.

Offset Hinges

Offset Hinges

Offset Hinges

Gate Components - Offset Hinges

Offset Hinges are used for larger, heavier gates.

Box Hinges

Offset Hinges

Box Hinges

Gate Components - Box Hinges

Box Hinges are used for larger, heavier gates and are capable of swinging in both directions to some degree.

Drop Rods

Offset Hinges

Box Hinges

Gate Components - Drop Rods

Drop Rods are used to secure double gates or prop one gate open.

Gravity Latch

Gravity Latch

Gravity Latch

Gate Components - Gravity Latch

Gravity Latches are basic latches for wood, aluminum  and vinyl gates.

Hatchet Latch

Gravity Latch

Gravity Latch

Gate Components - Hatchet Latch

Hatchet Latches are commonly used on PVC gates, and have a spring to latch closed more efficiently than Gravity Latches.

Magna Latch

Gravity Latch

Magna Latch

Gate Components - Magna Latch

Magna Latches are the standard latch for pool enclosures and other enclosures for children. When installed properly, the pull to release the latch is out of a child's reach. These latches are compatible with PVC and aluminum gates.
